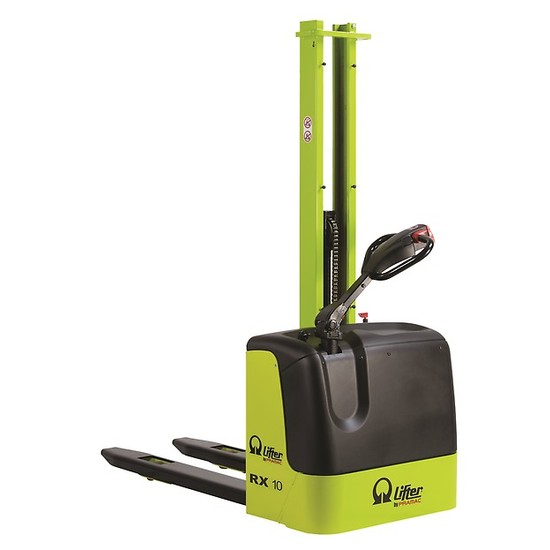

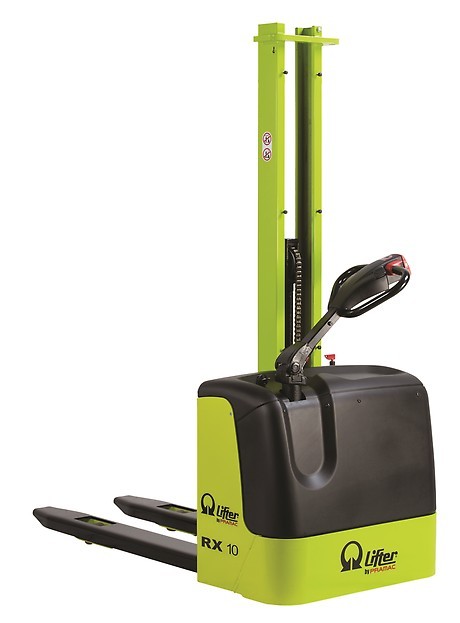

Pramac RX10/16 Plus Electric Powered Stackers 1000kG 1153x560
Pramac RX10/16 Plus Electric Powered Stackers 1000kG 1153x560

Pramac RX10/16 Plus Electric Powered Stackers 1000kG 1153x560

Product Code: HI31030B000

  • Easy to Use
  • Very Menoeuvrable
  • Standard Battery Charger Included
  • Semi-Traction Battery Included
  • 1000KG Load Capability
  • Fast Charger Option Available
  • Desktop Charger Option
    Pictures for illustration purposes only, colour and configuration may vary.



Only £3,218.00 ex. VAT
£ 3,861.60 inc. VAT
Qty:

Delivery & Returns

Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy

Need Help?

Ask us a question about this product, please use our contact form.

Pramac RX10/16 Plus Electric Powered Stackers 1000kG 1153x560

RX

RX is the most compact in the stackers’ range, single mast, completely electric, suitable for loads up to 1.000 kg, allowing a comfortable, safe use, with low maintenance costs, thanks to robust design with easy access for maintenance. RX combines compactness and ergonomics, covering a wide range of daily applications in the "light duty" area (not for continuous use).

PLUS

The PLUS version is equipped with powerful semitraction batteries that allow long endurance and large number of charging cycles, a tiller made with metal tube and ergonomic controls.

TILLER BASIC

Fully integrated ergonomic tiller system including finger tip throttle and fork controls, safety push button, horn, and turtle button.

VERSATILITY

It's ideal to move, even horizontally, palletized goods and at the same time it can be used as an adjustable workable, reducing stress for the operator who must place goods on a shelf. Forks thickness 60 mm for an easier entrance inside pallet, while working in elevation.

EASY MAINTENANCE

Strong ABS carter/cover with storage compartments on top. Easily removable to speed up maintenance operations. The bottom access opening allows an immediate disassembly of motor wheel, portal and tiller without lifting the machine.

ERGONOMICS

Ergonomic tiller placed laterally to increase visibility, ensuring an optimal arrangement of components inside the motor compartment. RX 10 solves perfectly the problem of handling goods in narrow spaces and corridors.

BATTERY PACK

Light-traction with tubular plate batteries allow up to 4 hours autonomy and a high number of charging cycle.

Back to Pramac RX10/16 Plus Electric Powered Stackers 1000kG

Specification

*Manufacturers Specication may change without prior notice, this is a guide only*

Description

1.1 Manufacturer PR INDUSTRIAL
1.3 Drive Electric
1.4 Operator type Pedestrian
1.5 Load capacity Q Kg 1000
1.6 Load centre distance c mm 600
1.8 Load axle to end forks x mm 786
1.9 Wheel base y mm 1165

Weights
2.1 Service weight (battery included) Kg: 371
2.2 Axle load, laden rear Kg 937
2.2 Axle load, laden front Kg 434
2.3 Axle load, unladen front Kg 269
2.3 Axle load, unladen rear Kg 102

Tyres/Chassis
3.1 Tyres: front wheels RUBBER
3.1 Tyres: stabilizers wheels - front POLY C.
3.1 Tyres: rear wheels POLY C.

Dimensions
4.2 Height, mast lowered h1 mm 1970
4.3 Normal free lifting h2 mm 1510
4.4 Lift height h3 mm 1510
4.5 Height, mast extended h4 mm 1970
4.9 Height of tiller in drive position max h14 mm 1310
4.21 Overall width b1 mm 794
4.22 Fork dimensions - Thickness s mm 60
4.22 Fork dimensions - Width e mm 150
4.22 Fork dimensions - Lenght l mm 1153
4.24 Fork carriage width b3 mm 650
4.25 Distance between fork arms b5 mm 560
4.32 Ground clearance, centre of wheelbase m2 mm 30
4.34 Aisle width Ast mm 2120
4.35 Turning radius Wa mm 1344

Performance data
5.1 Travel speed laden Km/h 3.7
5.1 Travel speed unladen Km/h 4.3
5.2 Service brake

Electric motors
6.1 Drive motor power kW 0.35
6.2 Lift motor power kW 2.2
Battery Type Tipo Traction (C5)
6.4 Battery voltage V 24
6.4 Battery capacity, Min Ah 54
6.5 Battery weight, Min Kg 38
6.6 Energy consumption according to VDI cycle kWh/h 0.45
8.4 Sound level at driver's ear dB(A) 63
