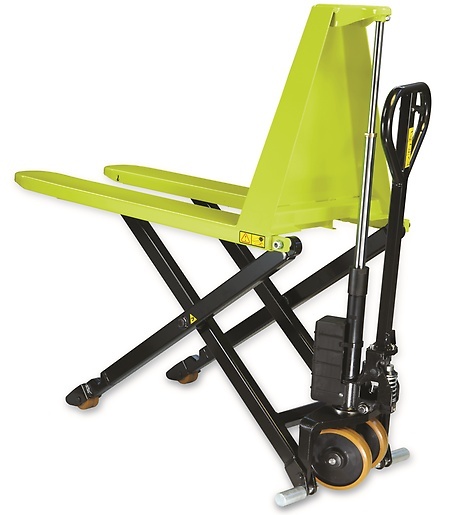

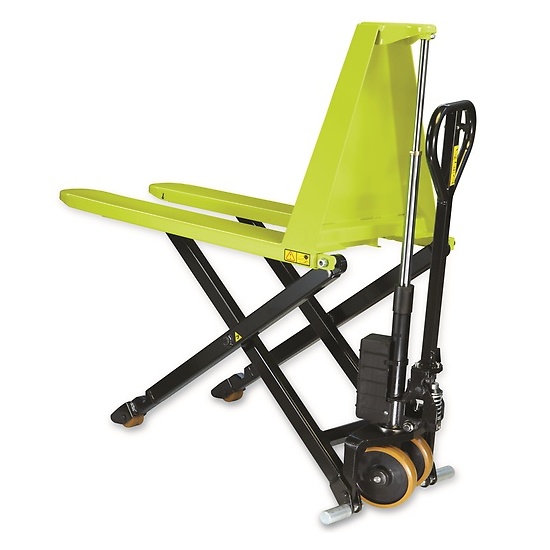

Pramac HX10M Manual High Lift Pallet Truck 1000KG 1150x540mm
Pramac HX10M Manual High Lift Pallet Truck 1000KG 1150x540mm

Pramac HX10M Manual High Lift Pallet Truck 1000KG 1150x540mm

Product Code: GT0420VBC00

  • Easy to Use
  • Very Menoeuvrable
  • High Scissor Lift
  • Sturdy Construction
  • 1000KG Load Capability

Pictures for illustration purposes only, colour and configuration may vary.

Only £675.00 ex. VAT
£ 810.00 inc. VAT
Qty:

Delivery & Returns

Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy

Need Help?

Ask us a question about this product, please use our contact form.

Pramac HX10M Manual High Lift Pallet Truck 1000KG 1150x540mm

HX10 M

The HX10M scissor lift makes possible an easy and light lifting to a height of 800 mm, becoming a practical work platform, suitable for places such as machine workshops. This pallet truck is also able to carry out the support function and material supply along the assembly and production lines.

CONTROL LEVER

The handle offers an ergonomic tiller and a 3 positions control lever. The special lowering valve allows you to smoothly lower the load.

HYDRAULIC UNIT

Resistant and reliable one piece cast iron pump including:
• TWO-STAGE TELESCOPIC LIFTING PISTON: to allow working with low profile frame granting lightness and better operator visibility.
• MAXIMUM PRESSURE VALVE: safety device that ensures the transpallet against overloads. When the pressure inside the hydraulic circuit exceeds the set calibration value according to the maximum nominal flow, the valve automatically locks the forks.
• PROPORTIONAL LOWERING VALVE: lowering speed can be proportionally controlled according to the lever position on the tiller. Perfect working tool to carry fragile and delicate loads like crystal, glass and ceramics.

FRONT AND REAR STABILIZERS
The new control linkage makes possible the entry on the closed side of the pallet by a slight lifting, which facilitates the successive handling phases. Furthermore, greater machine stability is achieved by using load rollers in a more advanced position and providing front stabilizers as standard. Work is made even more stable and safer with the rear stabilizers, also when the working height exceeds the 400 mm and in the case of heavy objects.

CONFIGURATION STANDARD: Nylon polyurethane steering wheels and polyurethane rollers. Quick lift. The perfect tool to lift quicker your loads up to 150 kg. The hydraulic pump is specifically engineered to cut by half the job time and increase efficiency.

Back to Pramac HX10M Manual High Lift Pallet Trucks

Specification

*Manufacturers Specication may change without prior notice, this is a guide only*

Description

1.1 Manufacturer: LIFTER
1.3 Drive: Manual
1.4 Operator type: Pedestrian
1.5 Load capacity Q Kg: 1000
1.6 Load centre distance c mm: 600
1.8 Load axle to end forks x mm :993
1.9 Wheel base y mm :1231

Weights

2.1 Service weight (battery included) Kg: 104
2.2 Axle load, laden rear Kg: 713
2.2 Axle load, laden front Kg: 391
2.3 Axle load, unladen front Kg: 71
2.3 Axle load, unladen rear Kg: 33

Tyres/Chassis

3.1 Tyres: front wheels: POLY.I./ NYLON
3.1 Tyres: rear wheels: POLY.I.
3.2 Tyre size: Steering wheels - Width mm: 45
3.2 Tyre size: Steering wheels - Diameter mm: 200
3.3 Tyre size: Load rollers - Diameter mm: 80
3.3 Tyre size: Load rollers - Width mm: 50
3.5 Tyre size: rear wheels - Q.ty (X=driven) nr: 2
3.6 Tread, front b10 mm: 155
3.7 Tread, rear b11 mm: 447

Dimensions

4.4 Lift height h3 mm: 715
4.9 Height of tiller in drive position min h14 mm: 415
4.9 Height of tiller in drive position max h14 mm: 1250
4.15 Height, lowered h13 mm: 85
4.19 Overall lenght l1 mm: 1526
4.20 Lenght to face of forks l2 mm: 376
4.21 Overall width b1 mm: 540
4.22 Fork dimensions - Thickness s mm : 48
4.22 Fork dimensions - Width e mm: 160
4.22 Fork dimensions - Lenght l mm: 1150
4.25 Distance between fork arms b5 mm: 540
4.32 Ground clearance, centre of wheelbase m2 mm: 21
4.34 Aisle width Ast mm: 2019
4.35 Turning radius Wa mm: 1369

Performance data

5.2 Lifting speed laden m/s: 62
5.2 Lifting speed unladen m/s: 30
5.3 Lowering speed laden m/s: 0.06
5.3 Lowering speed unladen m/s: 0.04
