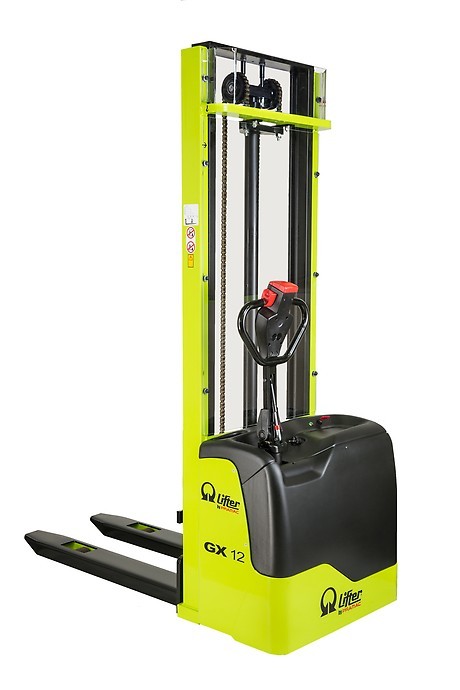

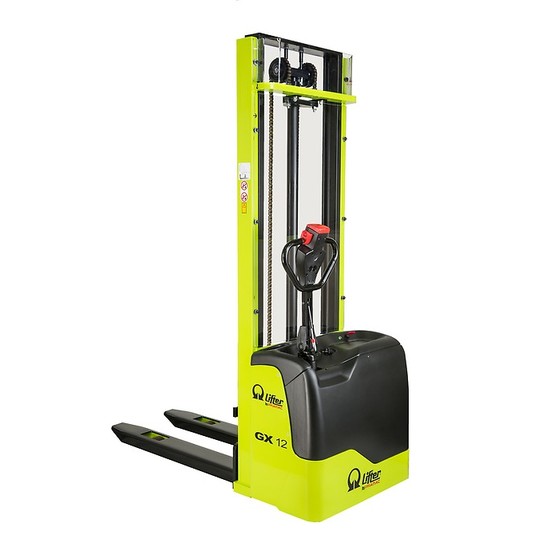

Pramac GX12 Basic Electric Powered Stackers 1200kG 1150x560
Product Code: HM51200B000
- Easy to Use
- Very Menoeuvrable
- Batteries Included
- Compact For Narrow Areas
- 1200KG Load Capability
- On Board Charger
Pictures for illustration purposes only, colour and configuration may vary.
Delivery & Returns
Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy
Need Help?
Ask us a question about this product, please use our contact form.
Pramac GX12 Basic Electric Powered Stackers 1200kG 1150x560
This compact, powerful and robust stacker is the ideal solution for working in confined spaces. The reduced width (800 mm), the lateral driving system and the wide mast positioning allow great manoeuvrability, stability and visibility. Built-in battery charger with integrated cable and plug make it a plug and play unit!
BASIC
The BASIC version is equipped with starting type battery, a tiller made with metal tube and ergonomic controls. This configuration is the best value for money choice.
MANOEUVRABILITY
The overall width is the same as the Europallet (800 mm) to allow working in narrow spaces and corridors, increasing manoeuvrability and reducing the turning radius. The combination of side guide, wide mast and low cover offer outstanding visibility.
TILLER BASIC
Fully integrated ergonomic tiller system including finger tip throttle and fork controls, safety push button, horn, and turtle button.
COVER
Strong ABS cover with storage compartments on top, easily removable to speed up maintenance operations. The bottom access opening enables an immediate disassembly of motor wheel, portal and tiller without lifting the machine. Schuko plug with spiral cable for an easy battery charging.
BATTERY PACK BASIC
The separate battery compartment is the housing of starting batteries. Such batteries are lightweight and inexpensive and are ideal for discontinuos use.
Specification
*Manufacturers Specication may change without prior notice, this is a guide only*
Description
1.3 Drive Electric
1.4 Operator type Pedestrian
1.5 Load capacity Q Kg 1200
Weights
2.1 Service weight (battery included) Kg: 530
Tyres/Chassis
3.1 Tyres: front wheels RUBBER
3.1 Tyres: stabilizers wheels - front POLY.C.
3.1 Tyres: rear wheels POLY.C.
Dimensions
4.2 Height, mast lowered h1 mm 1787
4.4 Lift height h3 mm 2410
4.5 Height, mast extended h4 mm 2992
4.9 Height of tiller in drive position max h14 mm 1310
4.15 Height, lowered h13 mm 90
4.19 Overall lenght l1 mm 1760
4.20 Lenght to face of forks l2 mm 609
4.21 Overall width b1 mm 800
4.22 Fork dimensions - Thickness s mm 70
4.22 Fork dimensions - Width e mm 150
4.22 Fork dimensions - Lenght l mm 1150
4.24 Fork carriage width b3 mm 650
4.25 Distance between fork arms b5 mm 560
4.32 Ground clearance, centre of wheelbase m2 mm 20
4.34 Aisle width Ast mm 2210
4.35 Turning radius Wa mm 1430
Performance data
5.1 Travel speed laden Km/h 4.7
5.1 Travel speed unladen Km/h 5.2
5.10 Service brake
Electric motors
6.1 Drive motor power kW 0.7
6.2 Lift motor power kW 2.2
Battery Type Tipo AUTOMOTIVE
6.4 Battery voltage V 24
6.4 Battery capacity, Min Ah 85
6.5 Battery weight, Min Kg 34
6.6 Energy consumption according to VDI cycle kWh/h 0.9
8.4 Sound level at driver's ear dB(A) 62
Residual lifting capacity Lifting height (H3) 2500 mm Kg 1200
