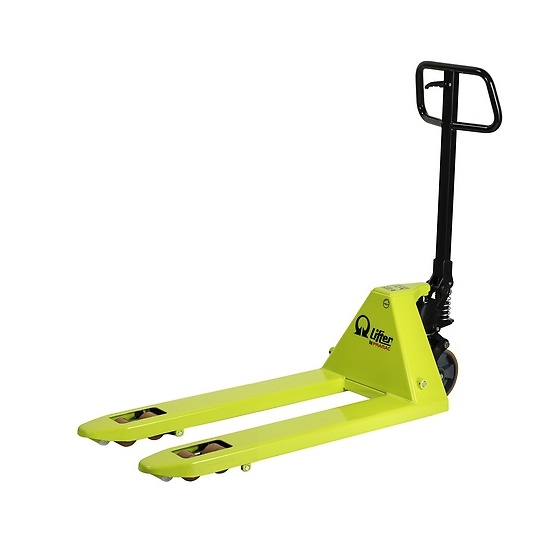

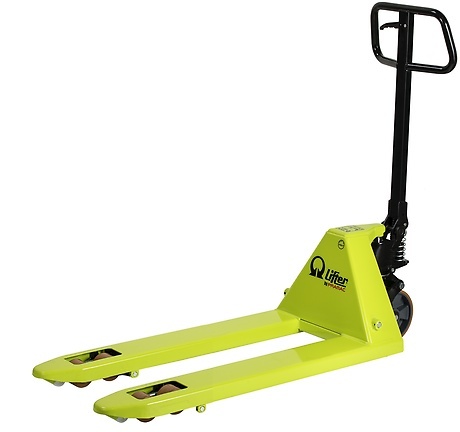

Pramac GS EVO 25S2 1150x525 2500KG Single Pallet Truck
Pramac GS EVO 25S2 1150x525 2500KG Single Pallet Truck

Pramac GS EVO 25S2 1150x525 2500KG Single Pallet Truck

Product Code: TE541AVY100

  • Monolithic Design
  • Chromed Piston Rod & Oil Seal
  • Maximum Pressure Valve
  • Proportional Lowering Valve
  • Powder Coated Durable Finish

Pictures for illustration purposes only, colour and configuration may vary.

Only £237.00 ex. VAT
£ 284.40 inc. VAT
Qty:

Delivery & Returns

Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy

Need Help?

Ask us a question about this product, please use our contact form.

Pramac GS EVO 25S2 1150x525 2500KG Single Pallet Truck

GS EVO Proffessional Pallet Truck

The GS EVO is the top choice for hand pallet truck: designed for an intensive use with maximum easiness of use and superior ergonomics. Available in a wide range of options, it is the right tool for customer that is looking for a tailored product for his application or simply a great professional tool.

HYDRAULIC UNIT
The GS EVO pump has been designed with extreme care of details in order to have superior characteristics and features, such as:
• Monolithic design: the resistant and reliable one-piece cast iron housing protects all components avoiding any accidental damages. Pump housing is processed with CNC machines to achieve high precision tolerances and high accuracy.
• Chromed piston rod and oil seal: in order to avoid rust and prevent oil leakage during the use.
• Maximum pressure valve: safety device that protects the transpallet against overloads.
• PROPORTIONAL LOWERING VALVE: lowering speed can be proportionally controlled according to the lever position on the tiller. Perfect working tool to carry fragile and delicate loads like crystal, glass and ceramics.

STANDARD CONFIGURATION
• Nylon - Poly 45 steering wheels
• Poly rollers
• Entry/exit rollers. Supplementary rollers to allow easier entrance and quicker exit from a closed pallet, reducing the impact on the main rollers and guaranteeing a longer life
• 3D Superior Ergonomic shape tiller. This tiller has a special 3D design, with enhanced ergonomics. Compared to a conventional tiller, this shape allows the operator to have a good position when pushing the loads with maximum efficiency without fatigue. This thanks to two large grasping side areas specifically designed to have a correct position during operation of the truck

VARNISHING
Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.

EASY TO MOUNT
Tiller easy to assemble with a fast mounting system. Robust tiller connection with two full welded joints that assure superior sturdiness in the toughest application.

Back to Pramac GS EVO 25S4

Specification

*Manufacturers Specication may change without prior notice, this is a guide only*

Description
1.1 Manufacturer: PR INDUSTRIAL
1.3 Drive: Manual
1.4 Operator type: Pedestrian
1.5 Load capacity Q Kg: 2500
1.6 Load centre distance c mm: 600
1.8 Load axle to end forks x mm: 932
1.9 Wheel base y mm 1192

Weights
2.1 Service weight Kg: 61
2.2 Axle load, laden rear Kg: 1823
2.2 Axle load, laden front Kg: 738
2.3 Axle load, unladen rear Kg: 19
2.3 Axle load, unladen front Kg: 42

Tyres/Chassis
3.1 Tyres: front wheels: POLY.I./ NYLON
3.1 Tyres: rear wheels: POLY
3.2 Tyre size: Steering wheels - Diameter mm: 200
3.2 Tyre size: Steering wheels - Width mm: 45
3.3 Tyre size: Load rollers - Diameter mm: 82
3.3 Tyre size: Load rollers - Width mm: 82
3.5 Tyre size: rear wheels - Q.ty (X=driven) nr: 2
3.5 Tyre size: front wheels - Q.ty (X=driven) nr: 2
3.6 Tread, front b10 mm: 155
3.7 Tread, rear b11 mm: 375

Dimensions
4.4 Lift height h3 mm: 115
4.9 Height of tiller in drive position max h14 mm: 1185
4.9 Height of tiller in drive position min h14 mm: 710
4.15 Height, lowered h13 mm: 85
4.19 Overall lenght l1 mm: 1550
4.20 Lenght to face of forks l2 mm: 400
4.21 Overall width b1 mm: 525
4.22 Fork dimensions - Thickness s mm: 55
4.22 Fork dimensions - Width e mm: 150
4.22 Fork dimensions - Lenght l mm: 1150
4.25 Distance between fork arms b5 mm: 525
4.32 Ground clearance, centre of wheelbase m2 mm: 30
4.34 Aisle width Ast mm 2048
4.35 Turning radius Wa mm: 1367

Performance data:
5.2Lifting speed laden strokes: 12
5.2 Lifting speed unladen strokes: 12
5.3 Lowering speed laden m/s: 0.06
5.3 Lowering speed unladen m/s 0.02
