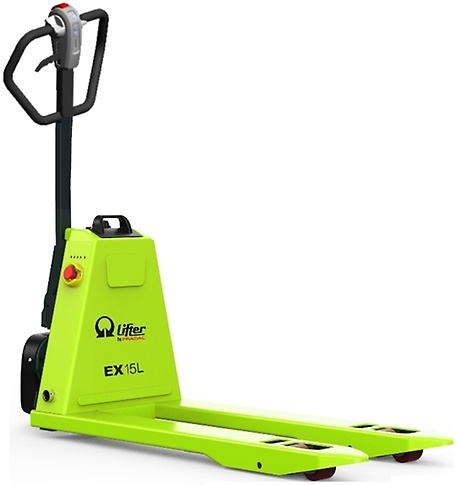

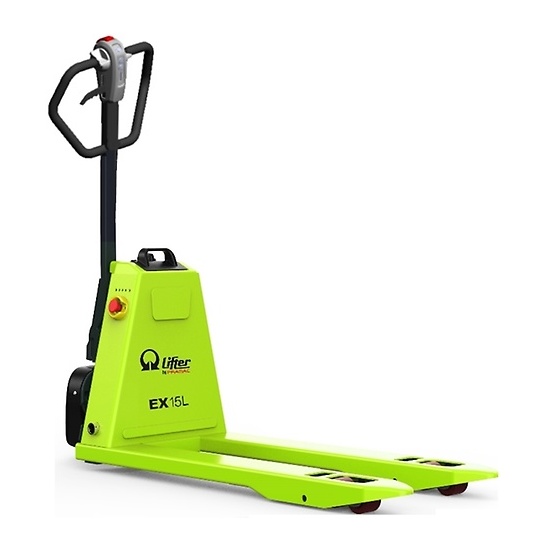

Pramac EX15L 1500KG Li-ion Electric Powered Pallet Truck 1150x560
Pramac EX15L 1500KG Li-ion Electric Powered Pallet Truck 1150x560

Pramac EX15L 1500KG Li-ion Electric Powered Pallet Truck 1150x560

Product Code: EXQ4EI00000

  • Easy to Use
  • Very Menoeuvrable
  • On Board Battery Charger Included
  • Li-Ion Battery Included
  • 1500KG Load Capability

Pictures for illustration purposes only, colour and configuration may vary.

Only £1,405.00 ex. VAT
£ 1,686.00 inc. VAT
Qty:

Delivery & Returns

Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy

Need Help?

Ask us a question about this product, please use our contact form.

Pramac EX15L 1500KG Li-ion Electric Powered Pallet Truck 1150x560

EX15L

The economic solution for your daily light-duty logistic operation. Simple and easy to use thanks to the compact size, low weight, maintenance free removable Li-ION battery and on-board charger, the EX15L can carry loads up to 1500 kg also on rampes.

MANOEUVRABILITY

The overall width of the machine matches with the fork width (560 mm). This makes the unit as compact as possible and, together with the reduced turning radius (1330 mm), enables to work in narrow spaces.

ROBUSTNESS

Robust frame designed to guarantee maximum durability and resistance to torsion and loads. Fork tips shaped for an easier entrance/exit on the closed side of the pallet.

SAFETY

Emergency push button, belly button and electrobrake are the standard safety features of the machine. The cover for driving wheel protects the operator's feet during work and secures the truck's components from collision with objects.

ON-BOARD BATTERY CHARGER

Built-in battery charger provides a convenient charging solution and eliminates the need to remove the battery form the machine. The on-board spiral cable and plug allow the battery charging on every schuko socket.

PLUG-IN & OUT LI-ION BATTERY

The new improved plug-in&out system enables an easy battery replacement in just few seconds, without using any cables.

EASY MAINTENANCE

Simple construction with a design that allows a really easy maintenance. The access to motorwheel can be done just removing few bolts and without lifting the unit. Maintenance-free Li-Ion battery.

Back to Pramac EX15L 1500KG Li-ion Electric Powered Pallet Truck

Specification

*Manufacturers Specication may change without prior notice, this is a guide only*

Description

1.1 Lift: Electric
1.3 Drive: Electric
1.4 Operator type: Pedestrian
1.5 Load capacity Q Kg: 1500
1.6 Load centre distance c mm: 600
1.8 Load axle to end forks x mm: 950
1.9 Wheel base y mm: 1190

Weights

2.1 Service weight (battery included) Kg: 120
2.2 Axle load, laden rear Kg: 1140
2.2 Axle load, laden front Kg: 480
2.3 Axle load, unladen front Kg: 90
2.3 Axle load, unladen rear Kg: 30

Tyres/Chassis
3.1 Tyres: front wheels: POLY.C
3.1 Tyres: rear wheels: POLY

Dimensions
4.4 Lift height h3 mm: 115
4.9 Height of tiller in drive position max h14 mm: 1190
4.9 Height of tiller in drive position min h14 mm: 750
4.15 Height, lowered h13 mm: 80
4.19 Overall lenght l1 mm: 1540
4.20 Lenght to face of forks l2 mm: 400
4.21 Overall width b1 mm: 560
4.22 Fork dimensions - Thickness s mm: 50
4.22 Fork dimensions - Width e mm: 150
4.22 Fork dimensions - Lenght l mm: 1150
4.25 Distance between fork arms b5 mm: 560
4.32 Ground clearance, centre of wheelbase m2 mm: 30
4.34 Aisle width Ast mm: 2050
4.35 Turning radius Wa mm: 1330

Performance data
5.1 Travel speed laden Km/h: 4,5
5.1 Travel speed unladen Km/h: 5,0
5.2 Lifting speed laden m/s: 0,017
5.2 Lifting speed unladen m/s: 0,020
5.3 Lowering speed laden m/s: 0,09
5.3 Lowering speed unladen m/s: 0,06
5.8 Max gradeability laden %: 6
5.8 Max gradeability unladen %: 16
5.10 Service brake: Electric

Electric motors
6.1 Drive motor power kW: 0,75
6.2 Lift motor power kW: 0,7
6.4 Battery voltage V: 24
6.4 Battery capacity, Min Ah: 20
6.4 Battery capacity, Max Ah: 20
6.5 Battery weight, Min Kg: 7
6.5 Battery weight, Max Kg: 7
8.4 Sound level at driver's ear dB(A) <74
