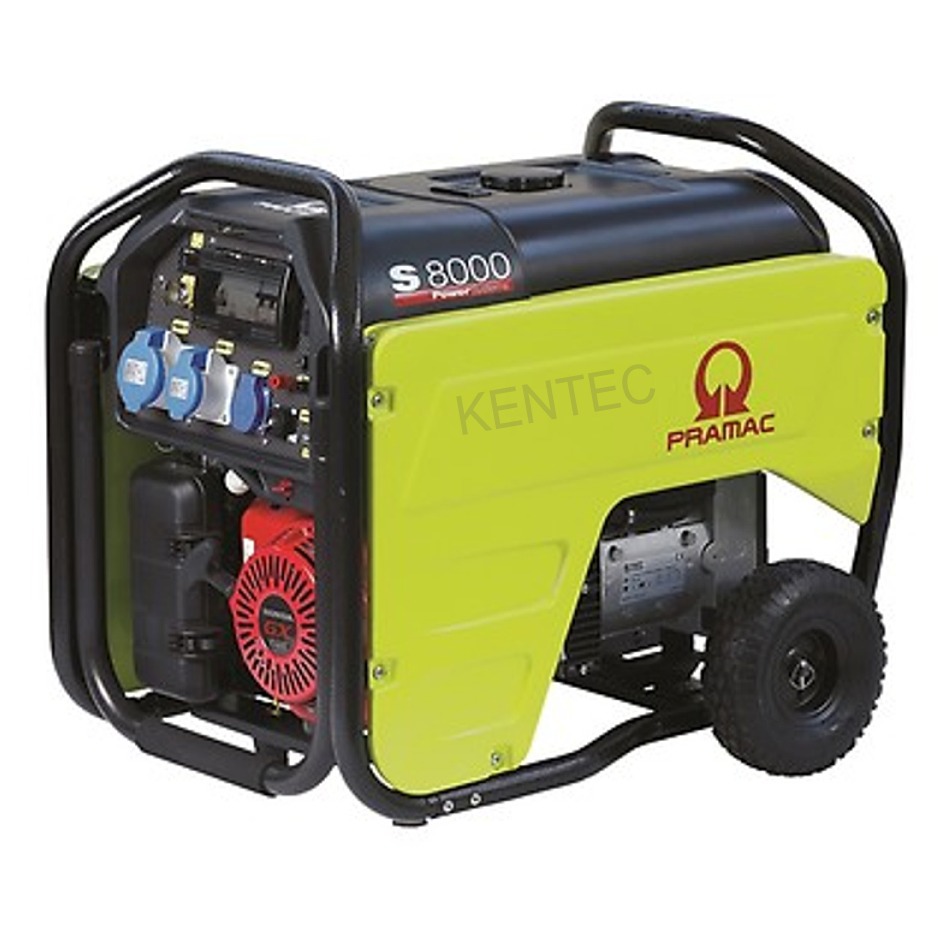

Pramac S8000 - 230v +CONN+AVR+RCD E-Start Petrol Generator
Product Code: PD612SH2Z05
- Honda GX390 Engine
- 7.2kVA / 6.4kW Max : 6kVA / 5.5kW Continuous
- Sockets: 1 x 230v 16a Shuko 1 x 230v 16a 1 x 32a
- Electric Start
- Long Run Tank
- FREE UK Mainland Delivery
- ADD: Wireless Remote Start/Stop Here
- ADD: Oil Here 2 Litres Req
Pictures for illustration only, colour and configuration may vary.
Delivery & Returns
Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy
Need Help?
Ask us a question about this product, please use our contact form.
Pramac S8000 - 230v +CONN+AVR+RCD E-Start Petrol Generator
The Complete Petrol Generator.
- The Pramac S8000-230v electric start is a robust generator with all the features of a premium quality product with a powerful, economic engine, a strong modern design and a long-run easy filling fuel tank. Perfect for intensive use, it is equipped with a control panel which allows integration of many accessories and options for better comfort and optimal command. Ready to move where power is needed, being configured with a strong, compact frame with integrated trollley kit for easy ergonomic transport.
- Main Features
- Frequency Hz: 50
- Voltage V: 230
- Power factor cos Ï•: 0.9
- Phase and connection: 1
- Power Rating Standby power LTP kVA: 7.2
- Standby power LTP kW: 6.4
- Continuous power COP kVA: 6.0
- Continuous power COP kW: 5.5
- Ratings definition (According to standard ISO8528 1:2005) COP - Continuous Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedures being carried out as prescribed by the manufacturers.
- LTP - Limited-Time running Power: It is defined as the maximum power available, under the agreed operating conditions, for which the generating set is capable of delivering for up to 500 h of operation per year (whose no more than 300 for continuative use) with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. No overload capability is available.
Why buy from an authorised dealer?
Purchasing throught an Authorised Dealer is the only way to ensure that: -
- You are buying a Brand New, Genuine Pramac Generator
- Your generator will be covered by Pramac's UK warranty.
- Servicing or repair work will be conducted by experienced personnel.
Specification
Pramac pdf Spec Sheet
Engine specifications
Engine: Honda GX390
Operating Speed-Nominal rpm: 3000
Speed governor: Mechanical
Fuel: Petrol
Oil capacity L: 1.1
Starting system: Electric
Alternator Specifications
Class: H
IP protection: 23
Poles: 2
Frequency Hz: 50
Voltage regulation system: AVR
Dimensional data
Length mm: 840, Width mm: 615, Height mm: 753
Dry weight Kg: 109
Fuel tank capacity L: 27
Autonomy Fuel consumption @ 75% PRP l/h: 2.14
Fuel consumption @ 100% PRP l/h: 2.87
Running time @ 75% PRP h: 12.62 @ 100% PRP h: 9.41
Guaranteed noise level (LWA) dB(A): 97
Noise pressure level @ 7 mt dB(A): 69
Basic Structure
• Tubular steel bearing and protective frame (roll bar)
• Lateral protective sheet steel covers (removable and with appropriate openings for an easier ordinary maintenance).
Fuel Tank
• Increased tank capacity (standard autonomy much higher than average)
• Fuel level indicator (analog)
• Bayonet Fuel Filler Cap
• Pre-filter fuelling cup-shape
• Fuel tap (located on the frontal control panel)
• In-line fuel filter
Engine
• Anti vibration properly sized mounts
• Starter battery incorporated in the structure
• Exhaust Residential muffler with spark arrestor protection
• Low oil level protection (oil guard)
Instrumentation
Start selector switch with key: OFF - ON - START
Pushbutton Choke
CONNector for AMF/RSS (Accessory available)
Voltmeter - Hours-counter - Frequency meter - Fuel gauge
Thermal Circuit Breaker
Differential Protection (DPP)
Cover Power Switch
Oil Guard
Sockets
Battery Charger 12V DC
1 x SHUKO 230V 16A IP54, 1 x 2P+T CEE 230V 16A IP44, 1 x 2P+T CEE 230V 32A IP44
*Specifications may change without prior notice*
