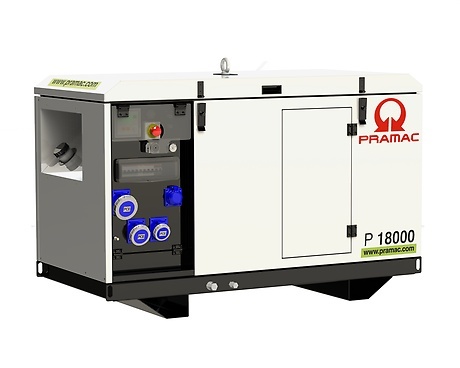

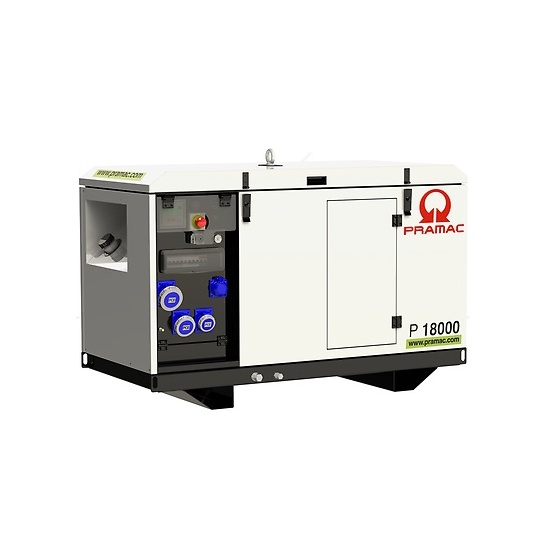

Pramac P18000 230v AVR Yanmar Diesel Generator
Pramac P18000 230v AVR+DPP Yanmar Diesel Generator

Pramac P18000 230v AVR+DPP Yanmar Diesel Generator

Product Code: PF183SYAZ09

Currently back order only, please call prior to purchase.

  • Yanmar Engine
  • Super Quiet Canopy 67dB(A)@7 meters
  • 230v 50Hz.
  • 15.49kVA Standby 14.18kVA continuous
  • Remote Start/Stop - 2 Wire.
  • +CONN Connectror for Accessories & Standby Apps
  • High Quality Build & Components

Pictures for illustration purposes only, colour and configuration may vary.



Only £5,358.80 ex. VAT
£ 6,430.56 inc. VAT
Qty:

Delivery & Returns

Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy

Need Help?

Ask us a question about this product, please use our contact form.

Pramac P18000 230v AVR+DPP Yanmar Diesel Generator

Low noise level, it is the ideal generator for use in residential areas or outside normal working hours. It's equipped with a reliable Diesel engine, first class components and complete instrumentation.

Main Features

Frequency Hz: 50
Voltage V: 230
Power factor cos Ï•: 0.9
Phase: 1
Power Rating
Standby power LTP kVA: 15.49
Standby power LTP kW: 13.94
Prime power PRP kVA: 14.71
Prime power PRP kW: 13.24
Continuous power COP kVA: 14.18
Continuous power COP kW: 12.76
Ratings definition (According to standard ISO8528 1:2005)

STEEL SUPPORTING FRAME:
• Sturdy Supporting Frame for moto-alternator and canopy.
• Anti-vibration mounting properly sized.

FULLY BUNDED BASEFRAME:
• Base forcable by forklift.
• Welder base with drainage point
• Big fuel integrated tank for an increased autonomy.
• Fuel level sensor.
• Fuel refiling point external for simple and rapid refueling operations (cap with key available as an accessory)

EASY AND FAST MAINTENACE SERVICE:
• Designed to access all components by opening the roof (opening and closing with safety key).
• Side door for engine service and maintenance (opening with locking system from inside the compartment)
• Oil draining pipe with cap.

Back to Pramac P Series Diesel Generators

Specification

Specifications.

*Manufacturers Specication may change without prior notice, this is a guide only*

Engine specifications
Engine manufacturer: Yanmar
Model 3TNV76-HPGE [50Hz]
Exhaust emission level: Unregulated
Engine cooling system: Water
Displacement cm³: 1116
Aspiration: Natural
Operating Speed-Nominal rpm: 3000
Speed governor: Mechanical
Fuel: Diesel
Oil capacity l: 4.4
Coolant capacity l: 0.9
Starting system: Electric
Electric circuit V: 12

Alternator Specifications
Type: Brushless
Class: H
IP protection: 23
Poles: 2
Frequency Hz: 50
Voltage V: 230
Voltage regulation system: AVR Standard AVR AVR960D
Voltage tolerance % 2

Dimensional data
Length (L) mm 1500 Width (W) mm 754 Height (H) mm 1032
Dry weight Kg: 457
Fuel tank capacity l: 51
Autonomy Fuel consumption @ 75% PRP l/h: 4.79
Fuel consumption @ 100% PRP l/h: 6.22
Running time @ 75% PRP h: 10.65
Running time @ 100% PRP h: 8.20
Noise level Guaranteed noise level (LWA) dB(A): 96
Noise pressure level @ 7 m dB(A): 67

SOCKET TYPE
1 x SCHUKO 230V 16A IP68
1 x 2P+T CEE 230V 16A IP67
2 x 2P+T CEE 230V 32A IP67
