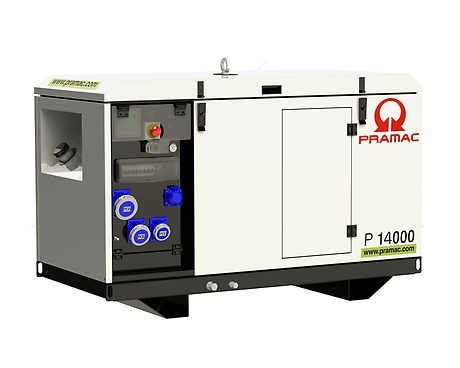

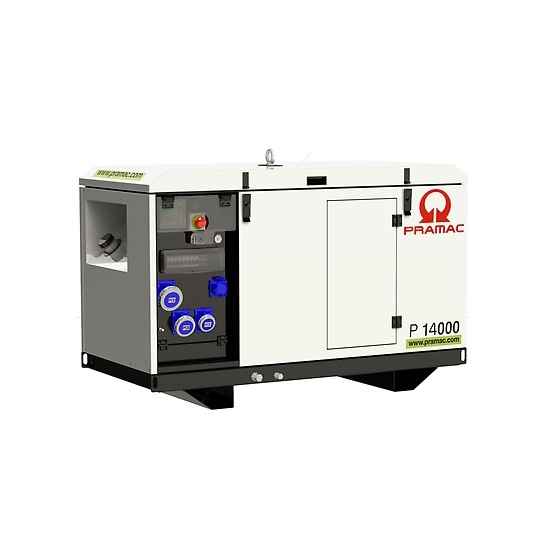

Pramac P14000 230v AVR Yanmar Powered Diesel Generator
Pramac P14000 230v AVR+DPP Yanmar Diesel Generator

Pramac P14000 230v AVR+DPP Yanmar Diesel Generator

Product Code: PF123SYAZ09

Currently no UK stock, call us for latest news.

  • Yanmar Engine
  • Super Quiet Canopy 67dB(A)@7 meters
  • Fully Bunded Base Frame
  • 230v 50Hz.
  • 13kVA Standby 10.7kVA continuous
  • Remote Start/Stop - 2 Wire.
  • +CONN Connectror for Accessories & Standby Apps
  • High Quality Build & Components

Pictures for illustration purposes only, colour and configuration may vary.


Only £5,630.00 ex. VAT
£ 6,756.00 inc. VAT

Delivery & Returns

Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy

Need Help?

Ask us a question about this product, please use our contact form.

Pramac P14000 230v AVR+DPP Yanmar Diesel Generator

Low noise level, it is the ideal generator for use in residential areas or outside normal working hours. It's equipped with a reliable Diesel engine, first class components and complete instrumentation.

Main Features

Frequency Hz: 50
Voltage V: 230
Power factor cos Ï•: 0.9
Phase: 1
Power Rating
Standby power LTP kVA: 13.21
Standby power LTP kW: 11.89
Prime power PRP kVA: 12.03
Prime power PRP kW: 10.83
Continuous power COP kVA: 10.76
Continuous power COP kW: 9.68
Ratings definition (According to standard ISO8528 1:2005)

Back to Pramac P Series Diesel Generators



*Manufacturers Specication may change without prior notice, this is a guide only*

Engine specifications

Engine manufacturer: Yanmar
Model: 3TNM74FNHPGE [50Hz]
Exhaust emission level: Stage V
Engine cooling system: Water
Displacement cm³: 993
Aspiration: Natural
Operating Speed-Nominal rpm: 3000
Speed governor: Mechanical
Fuel: Diesel
Oil capacity l: 3.4
Coolant capacity l: 1
Starting system: Electric
Electric circuit V: 12

Dimensional data

Length (L) mm 1500 Width (W) mm 754 Height (H) mm 1032
Dry weight Kg: 425.5
Fuel tank capacity l: 51
Autonomy Fuel consumption @ 75% PRP l/h: 3.28
Fuel consumption @ 100% PRP l/h: 4.65
Running time @ 75% PRP h: 15.55
Running time @ 100% PRP h: 10.97
Noise level Noise pressure level @ 7 m dB(A): 67


1 x SCHUKO 230V 16A IP68
1 x 2P+T CEE 230V 16A IP67
2 x 2P+T CEE 230V 32A IP67
