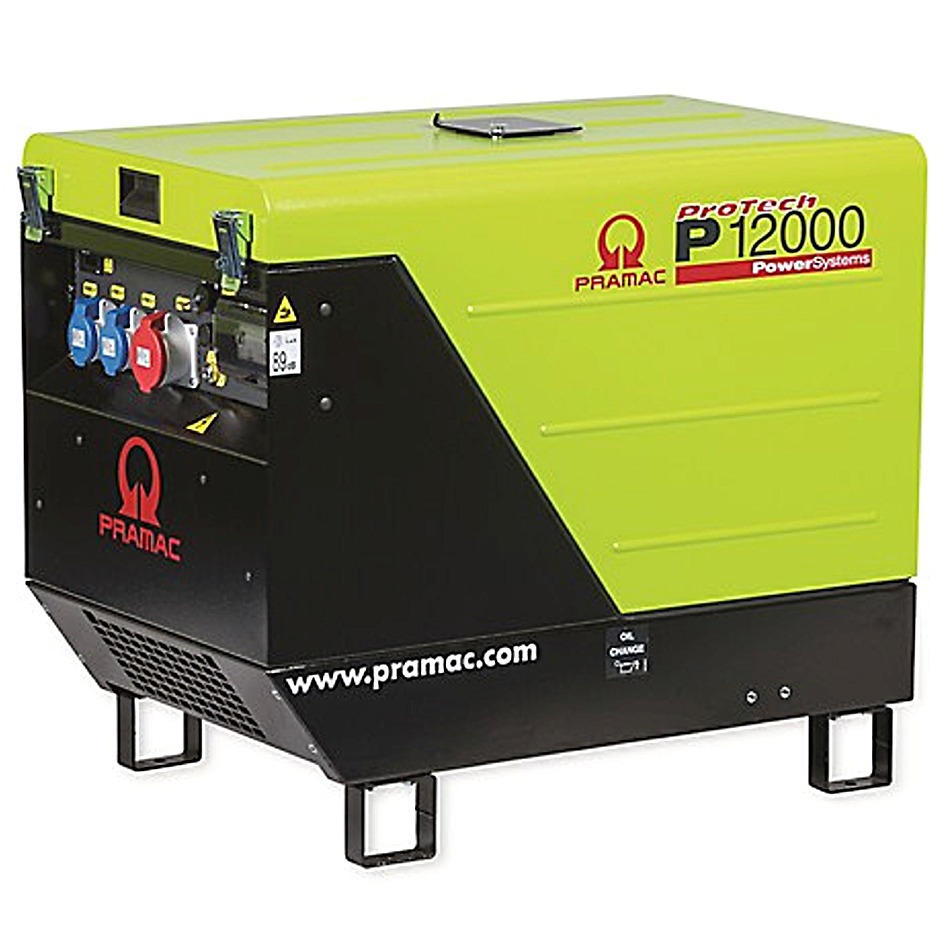

Pramac P12000 400v +AVR +CONN +DPP Pramac Generator
Product Code: PF123TH2003
**Please CALL US to check stock BEFORE BUYING
ONLINE.
- Honda GX630 Engine
- 13.9kVA/11..kW Max
- 11.8kVA/9.5kW Continuous
- Long Run
- Sockets 1 x 230v 16a Shuko 2 x 230v 16a CEE 1 x 400v 16a CEE +AVR +CONN +DPP
- Free UK Mainland Delivery
- Add Oil Here 2 Litres Req
- Add Trolley Kit Here
- Add Wireless Remote Start/Stop Here
Pictures for illustration purposes only, colour and configuration may vary.
Delivery & Returns
Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy
Need Help?
Ask us a question about this product, please use our contact form.
Pramac P12000 400v +AVR +CONN +DPP Pramac Generator
Pramac P12000 400V 50HZ #CONN #DPP
THE SILENT POWER
Low noise level, it is the ideal generator for use in residential areas or outside normal working hours. It's equipped with a reliable gasoline engine, first class components and complete instrumentation.
Main Features
Frequency Hz: 50
Voltage V: 400
Power factor cos Ï•: 0.8
Phase and connection: 3
Power Rating Standby power LTP kVA: 13.9
Standby power LTP kW: 11.1
Continuous power COP kVA: 11.8
Continuous power COP kW: 9.5
Single Phase Power Rating
Single phase standby power LTP kVA: 4.6
Single phase continuous power COP kVA: 4.0
GENSET CONTROL PANELS (HUK)
Mounted on the genset and complete of: instrumentation, control, protection of the generating set and sockets.
COMMANDS - Start selector switch with key: OFF - ON - START
CONNector for AMF/RSS (Accessory available)
INSTRUMENTATION (DGT) - Voltmeter - Frequency meter - Hour meter
PROTECTIONS - Circuit breaker - Cover protection circuit breaker IP55
SOCKET TYPE - 1 x SCHUKO 230V 16A IP54 2 x 2P+T CEE 230V 16A IP44
1 x 3P+N+T CEE 400V 16A IP44 1
Options:
Options list available to customise your generator to meet your requirements, please contact us for more information.
Specification
*Pramac specs may change without prior notice*
Engine specifications
Engine: Honda Model GX630
Operating Speed-Nominal rpm: 3000
Speed governor: Mechanical
Fuel: Petrol
Oil capacity L: 1.9
Starting system: Electric
Alternator Specifications
Class: H
IP protection: 23
Poles: 2
Frequency Hz: 50
Voltage regulation system: Compound
Dimensional Data
Length mm: 990, Width mm: 602, Height mm: 826
Dry weight Kg: 188
Fuel tank capacity L: 24
Autonomy Fuel consumption @ 75% PRP l/h: 4.23
Fuel consumption @ 100% PRP l/h: 5.64
Running time @ 75% PRP h: 5.67
Running time @ 100% PRP h: 4.26
Noise level Guaranteed noise level (LWA) dB(A): 96
Noise pressure level @ 7 mt dB(A): 68
Genset Control Panels (CONN)
Start selector switch with key: OFF - ON - START
Pushbutton Choke
CONNector for AMF/RSS (Accessory available)
Protections
Magneto Thermal Protection
Oil Guard
Sockets
1 x 230V 16A IP54 Shuko 2 x 2P+T CEE 230V 16A IP44
1 x 3P+T CEE 400V 16A IP44
*Specifications may change without prior notice*
