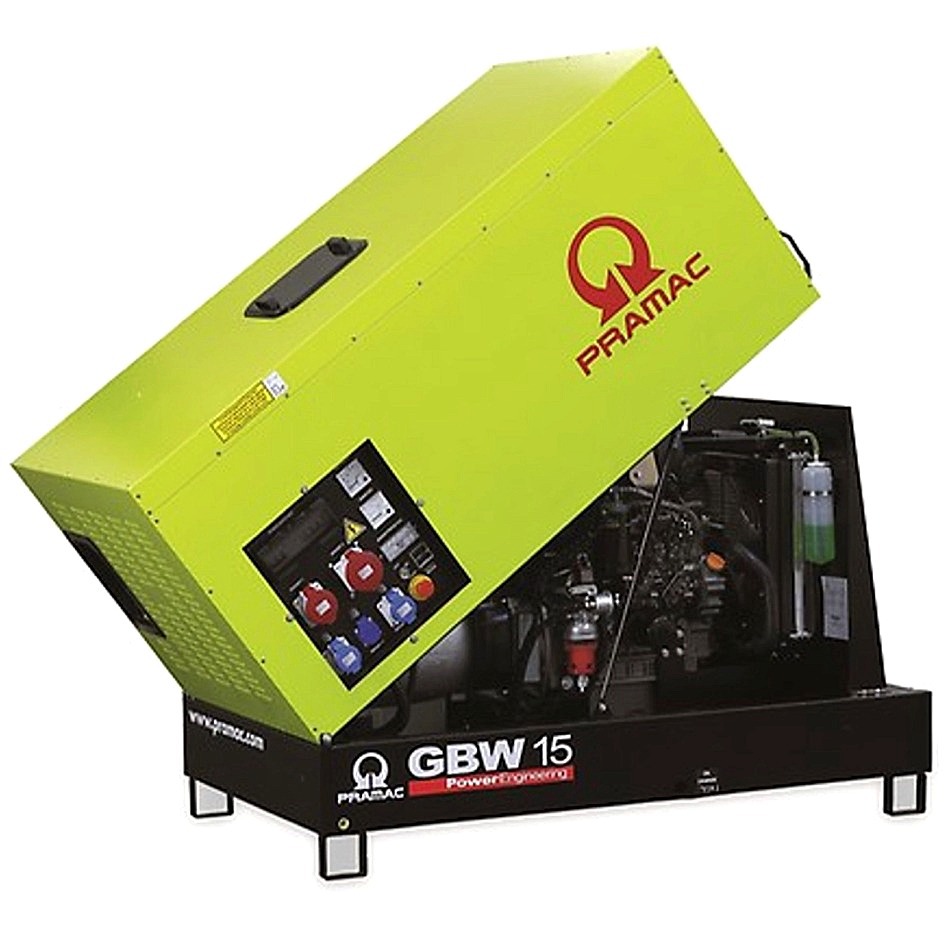

Pramac GBW15P 3-Phase Standby Diesel Generator

Pramac GBW15P 3-Phase Main Features

Frequency Hz: 50

Voltage V: 400

Power factor cos Ï•: 0.8

Phase and connectio: 3

Power Rating Standby power LTP kVA: 14.10

Standby power LTP kW: 11.28

Prime power PRP kVA: 12.72

Prime power PRP kW: 10.18

Ratings definition (According to standard ISO8528 1:2005) PRP - Prime Power: It is defined as being the maximum power which a generating set is capable of delivering continuously whilst supplying a variable electrical load when operated for an unlimited number of hours per year under the agreed operating conditions with the maintenance intervals and procedures being carried out as prescribed by the manufacturer. The permissible average power output over 24 h of operation shall not exceed 70 % of the prime power. LTP - Limited-Time running Power: It is defined as the maximum power available, under the agreed operating conditions, for which the generating set is capable of delivering for up to 500 h of operation per year (whose no more than 300 for continuative use) with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. No overload capability is available.

Genset equipment

BASE FRAME MADE OF WELDER STEEL PROFILE, COMPLETE WITH:

• Anti-vibration mountings properly sized

• Visual fuel level indicator

•Integrated support legs.

PLASTIC FUEL TANK, COMPLETE WITH:

• Filler neck

• Air breather (ventilation pipe)

• External fuel refilling

OIL DRAININ PIPE WITH CAP:

• Oil draining facilities

CANOPY:

• Single piece hinged soundproof canopy equipped with pneumatic arms and handles to lift up the canopy allowing easy access to the genset for maintenance purposes.

• Simple handling operations with central lifting eye

SOUNDPROOF:

• Noise attenuation thanks to soundproofing material (polyurethane foam) and efficient residential silencer placed inside the canopy.

MCP - Manual control panel Manual control panel, mounted on the genset and complete of: instrumentation, control, protection and sockets

INSTRUMENTATION (ANALOGUE)

• Voltmeter (1 phase)

• Ammeter (1 phase)

• Hours-counter

COMMANDS AND OTHERS

• Start/stop selector switch with key (Glow plugs preheating function also included).

• Emergency stop button

PROTECTION WITH ALARM

• Battery charger failure

• Low oil pressure

• High engine temperature

• Earth Fault

PROTECTIONS WITH SHUTDOWN

• Battery charger failure

• Low oil pressure

• High engine temperature

• Circuit breaker protection: III poles

OTHERS

• Cowel protection power switch
