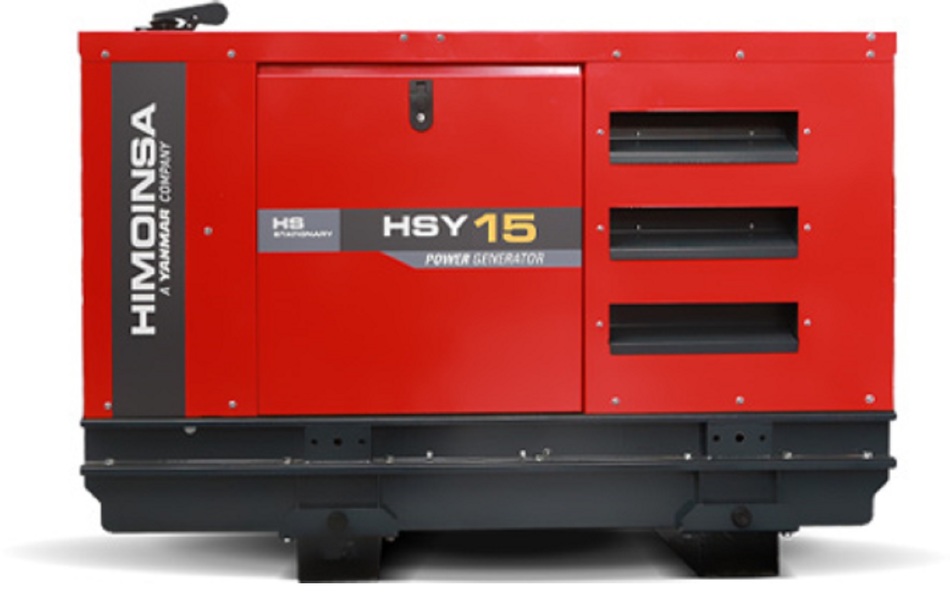

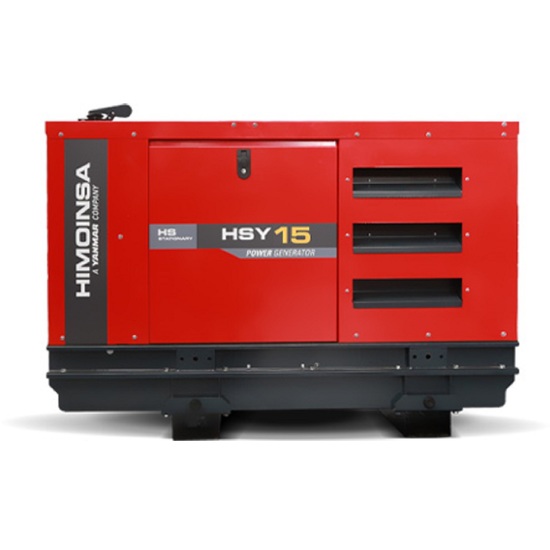

Himoinsa HSY-15 M5 230v Standby Generator
Himoinsa HSY-15 M5 230v Standby Generator

Himoinsa HSY-15 M5 230v Standby Generator

Product Code:

  • 13.3kVA Standby 12.1kVA Prime
  • 230v Single-Phase
  • Yanmar 1500rpm Engine
  • Long Run - 40hrs
  • 62 dB(A)@7mtrs
  • 2-Wire Start, Full Standby Spec.

Pictures for illustration purposes only, colour and configuration may vary.

Price on Application
Please contact us for a great deal.

Need Help?

Ask us a question about this product, please use our contact form.

Delivery of Power Systems

Please contact us to discuss your delivery requirements

Himoinsa HSY-15 M5 230v Standby Generator

• Steel chassis
• Lower power cable outlet with aluminum cover
• Side auxiliary cable outlet with aluminum cover
• Modular tank and retention tray system. Allows easy removal and / or maintenance of the equipment
• Wide access to the engine compartment because of a removable door
• Fuel tank in retention tray
• Soundproofing with foam and polyurethane film
• 4 side lifting points
• Anti-vibration shock absorbers
• Fuel tank
• Fuel level gauge
• External emergency stop switch
• Bodywork made from high quality steel plate
• High mechanical strength
• Epoxy polyester powder coating
• Full access for maintenance (water, oil and filters, no need to remove the canopy)
• Versatility to assemble a high capacity chassis with a metallic fuel tank
• IP Protection according to ISO 8528-13:2016

Back to Himoinsa Generators


*Manufacturers Specication may change without prior notice, this is a guide only*

Rated Output (PRP) kW: 12,2

Rated Output (ESP) kW: 14,2
Manufacturer: YANMAR
Model: 3TNV88HSPU
Cooling System: Coolant Lube
Oil Specifications: SAE 3 class 10W30 / API grade CD,CF
Fuel Consumption ESP l/h: 3,91
Fuel Consumption 100% PRP l/h: 3,19
Fuel Consumption 75 % PRP l/h: 2,50
Fuel Consumption 50 % PRP l/h: 1,83
Total oil capacity L: 6,7
Total coolant capacity L: 4,8
Governor Type: Mechanical

Manufacturer: MECC ALTE
Model: ECP28.M4C
Poles No:. 4
Connection type: (standard) Double delta
Insulation: Class H
Enclosure (according IEC-34-5): IP23
Exciter system: Self-excited
Voltage regulator: A.V.R. (Electronic)


Width: 750mm
