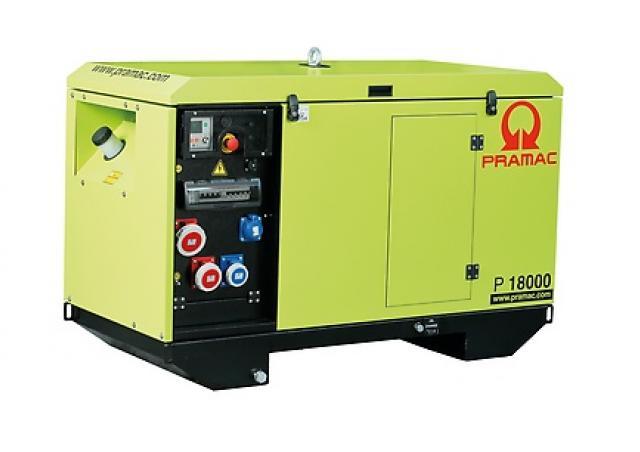

Pramac P18000 400v AVR Yanmar Diesel Generator
Pramac P18000 400v AVR Yanmar Diesel GeneratorPramac P18000 400v AVR Yanmar Diesel GeneratorPramac P18000 400v AVR Yanmar Diesel Generator

Pramac P18000 400v AVR Yanmar Diesel Generator

Product Code: PF183TYAZ08

Currently back order only, please call prior to purchase.

  • Yanmar Engine
  • Super Quiet Canopy 67dB(A)@7 meters
  • 400v 50Hz.
  • 17.94kVA Standby 16.42kVA continuous
  • Remote Start/Stop - 2 Wire.
  • +CONN Connectror for Accessories & Standby Apps
  • High Quality Build & Components

Pictures for illustration purposes only, colour and configuration may vary.



Only £5,068.00 ex. VAT
£ 6,081.60 inc. VAT
Qty:

Delivery & Returns

Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy

Need Help?

Ask us a question about this product, please use our contact form.

Pramac P18000 400v AVR Yanmar Diesel Generator

Low noise level, it is the ideal generator for use in residential areas or outside normal working hours. It's equipped with a reliable Diesel engine, first class components and complete instrumentation.

Main Features
Frequency Hz: 50
Voltage V: 400/231
Power factor cos Ï•: 0.8
Phase: 3

Power Rating
Standby power LTP kVA: 17.94
Standby power LTP kW: 14.35
Prime power PRP kVA: 17.04
Prime power PRP kW: 13.63
Continuous power COP kVA: 16.42
Continuous power COP kW: 13.14
Single Phase Power Rating
Single phase standby power LTP kVA: 10.80
Single phase continuous power COP kVA: 10.00
Ratings definition (According to standard ISO8528 1:2005)

STEEL SUPPORTING FRAME:
• Sturdy Supporting Frame for moto-alternator and canopy.
• Anti-vibration mounting properly sized.

FULLY BUNDED BASEFRAME:
• Base forcable by forklift.
• Welder base with drainage point
• Big fuel integrated tank for an increased autonomy.
• Fuel level sensor.
• Fuel refiling point external for simple and rapid refueling operations (cap with key available as an accessory)

EASY AND FAST MAINTENACE SERVICE:
• Designed to access all components by opening the roof (opening and closing with safety key).
• Side door for engine service and maintenance (opening with locking system from inside the compartment)
• Oil draining pipe with cap.

Back to Home/Office Standby

Specification

Specifications.

*Manufacturers Specication may change without prior notice, this is a guide only*

Engine specifications
Engine manufacturer: Yanmar
Model: 3TNV76-HPGE [50Hz]
Exhaust emission level: Unregulated
Engine cooling system: Water
Displacement cm³: 1116
Aspiration: Natural
Operating Speed-Nominal rpm: 3000
Speed governor: Mechanical
Fuel: Diesel
Oil capacity l: 4.4
Coolant capacity l: 0.9
Starting system: Electric
Electric circuit V: 12

Alternator Specifications
Type: Brushes
Class: H
IP protection: 23
Poles: 2
Frequency Hz: 50
Voltage V: 400/230
Voltage regulation system: AVR Standard AVR AVR 960D
Voltage tolerance %: 1.5

Dimensional data
Length (L) mm 1500 Width (W) mm 754 Height (H) mm 1032
Dry weight Kg: 455
Fuel tank capacity l 51
Autonomy Fuel consumption @ 75% PRP l/h: 4.79
Fuel consumption @ 100% PRP l/h: 6.22
Running time @ 75% PRP h: 10.65
Running time @ 100% PRP h: 8.20
Noise level Guaranteed noise level (LWA) dB(A): 96
Noise pressure level @ 7 m dB(A): 67

SOCKET TYPE
1 x SCHUKO 230V 16A IP68
1 x 2P+T CEE 230V 16A IP67
1 x 3P+N+T CEE 400V 16A IP67
1 x 3P+N+T CEE 400V 32A IP67
