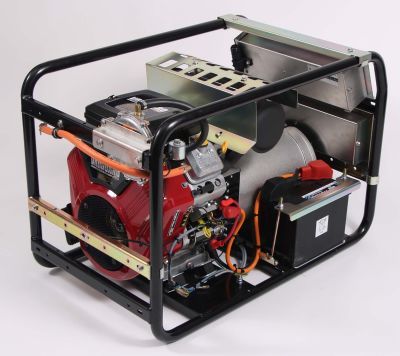

GB12000VL AS 12KVA LPG Auto Start
Product Code: 5000-G50-26873
- Briggs & Stratton Vanguard Engine
- 12kVA
- 2-Wire Auto Start
- LPG Fuel
Pictures for illustration purposes only, colour and configuration may vary.
Delivery & Returns
Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy
Need Help?
Ask us a question about this product, please use our contact form.
GB12000VL AS 12KVA LPG Auto Start
AUTO-START LPG GENERATOR - suitable for connecting to inverter or AMF panel to automatically start / stop the generator when power is needed
Designed and manufactured in the UK
*This Generator is Propane (LPG) powered and can be connected to standard propane bottles or a sited propane tank. It has AVR (automatic voltage regulation) which makes it suitable for powering electronic equipment so is ideal for modern domestic requirements.
Fitted with a Remote 2 Wire Start control panel incorporating the Deep Sea DS3110, which offers the ability to be started Manually or set to Automatic Start Mode. The DSE3110 includes a back-lit icon LCD display which shows engine speed and hours run as well as monitoring the generator voltage & frequency. It is programmed to display warning and shutdown status. The Unit will shut down on under or over frequency as well as high or low voltage. It is also fitted with over temperature shut down.
-Socket configuration-
Choice of 1x63A 230v OR 1x32A 2x16A
-Standard features -
complete LPG regulator assembly to fit direct to LPG cylinder
Battery charger for connecting to mains to maintain battery voltage
-Optional extras -
extension leads
appliance inlet sockets
AMF panel
cooling and exhaust extraction kit
Wheel kit
Specification
Specifications: *Manufacturers Specication may change without prior notice, this is a guide only*
| Model | Vanguard GB12000VL AS |
| kVA Output | Large (12+) |
| Sound Level | Industrial |
| Fuel Type | LPG |
| Starting System | Auto-Start |
| Phase | Single Phase |
| Generator Type | Fixed Speed AVR |
| Maximum KVA (@ 0.8pf) | 11.9 kVA |
| Maximum Output (Watts) | 9600 |
| Continuous Output (Watts) | 9000 |
| AC Voltage Available | 230 |
| AVR (Automatic Voltage Regulator) | Included |
| Frequency (Hertz) | 50Hz |
| Engine Model | Vanguard 23HP |
| Engine Displacement (cc) | 630 |
| Low Level Oil Alert System | Yes (oil P/S) |
| Transport Wheels | Optional |
| Lifting Hook | Optional |
| Approx. LPG Usage @ Continuous Output (KG/H) | 3.9 |
| Noise Level (1/4 load@7M) | 71dBA |
| Guaranteed noise level (LWA) | 96dBA |
| Length (mm) (Without Handles and Wheels) | 777 |
| Length (mm) (With Handles and Wheels) | 815 |
| Length (mm) (With Handles Folded out) | 1380 |
| Width (mm) (Without Handles and Wheels) | 510 |
| Width (mm) (With Handles and Wheels) | 693 (Pneumatic wheels 735) |
| Height (mm) (With Wheels) | 725 |
| Height (mm) (Without Wheels) | 580 |
| Dry Weight (KG) | 149 |
