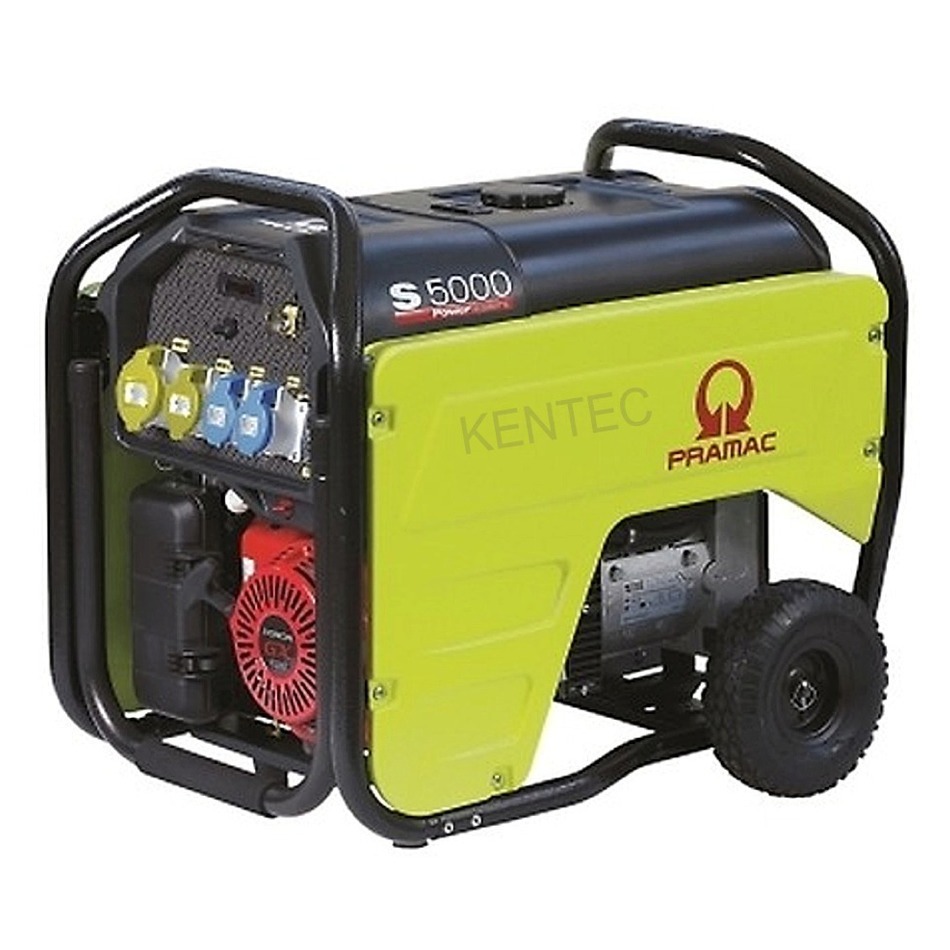

Pramac S5000 230/115v E-Start Petrol Generator
Product Code: PD412SH2Z06
- Please check stock before ordering online.
- Honda GX270 Engine
- 5.3kVA/4.8kW Max
- 4.2kVA/3.9kW Continuous
- Intergrated Wheel Kit
- Long Run Tank
- 1 x 110v 16a, 1 x 110v 32a, 2 x 230v 16a sockets
- Free UK Delivery
- Order Oil Here 2 Litres Req
Pictures for illustration only, colour and configuration may vary.
Delivery & Returns
Free delivery on all orders to UK Mainland.
Delivery Details & Returns Policy
Need Help?
Ask us a question about this product, please use our contact form.
Pramac S5000 230/115v E-Start Petrol Generator
The Complete Petrol Generator.
- The Pramac S5000 electric start is a robust generator with all the features of a premium quality product with a powerful and economic engine, a strong and modern design and a long-run easy filling fuel tank. Perfect for intensive use, it's equipped with a control panel which allows to integrate many accessories and options for better comfort and for optimal command. Ready to move where power is needed being configured with a strong and compact frame with integrated handle and wheels that allows easy ergonomic transport.
- This Honda powered generator comes with both 230v and 110v power output sockets for convenience and site work.
-
Why buy from an authorised dealer?
Purchasing through an Authorised Dealer is the only way to ensure that: You are buying a brand-new, Genuine Pramac Generator.Your generator will be covered by Pramac's UK warranty, any servicing or repair work will be conducted by experienced personnel.
Specification
*Pramac specs may change without prior notice*
Engine specifications
Engine: Honda GX270
Operating Speed-Nominal rpm: 3000
Fuel: Petrol
Oil capacity L: 1.1
Starting system: Electric/Recoil
Alternator Specifications
Type: Brushless
Class: H
IP protection: 23
Frequency Hz: 50
Voltage regulation system: Capacitor
Dimensional data
Length mm: 840, Width mm: 615, Height mm: 753
Dry weight Kg: 89
Fuel tank capacity L: 27
Autonomy Fuel consumption @ 75% PRP l/h: 1.67
Fuel consumption @ 100% PRP l/h: 2.22
Running time @ 75% PRP h: 16.17
Running time @ 100% PRP h: 12.16
Guaranteed noise level (LWA) dB(A): 97
Noise pressure level @ 7 mt dB(A): 69
Basic Structure
Tubular steel bearing and protective frame (roll bar)
Lateral protective sheet steel covers (removable and with openings for easier maintenance).
Integrated transport kit consisting of two solid rubber wheels and a non-slip rubber foldaway handle.
2 lifting points on the upper part of the frame.
Anti vibration properly sized mounts
Exhaust Residential muffler with spark arrestor protection
Fuel Tank
Increased tank capacity (standard autonomy much higher than average)
Fuel level indicator (analog)
Bayonet Fuel Filler Cap
Pre-filter fuelling cup-shape
Fuel tap (located on the frontal control panel)
In-line fuel filter
Genset Controls
Selector switch OFF - ON
Voltmeter - Hours-counter - Frequency meter - Fuel gauge
Protection
Thermal Circuit Breaker
Oil Guard
Fuse 10A (12V DC)
Sockets
Battery Charger 12VDC
1 x 2P+T CEE 115V 16A IP44, 1 x 1 2P+T CEE 115V 32A IP44, 2 x 2P+T CEE 230V 16A IP44
*Specifications may change without prior notice*
